KartFab Two-Seat Kart

KartFab is the plan every 'free go kart plans' search eventually lands on, and for once the top result deserves it. This is the most complete free steel-kart plan on the internet, it is genuinely free with no email wall, and it comes with a video series that films most of the cuts and welds. We sell plans for a living, and we will still tell you plainly: if you only look at one free plan, look at this one. Here is the full breakdown, and exactly where it stops short.

What you actually get

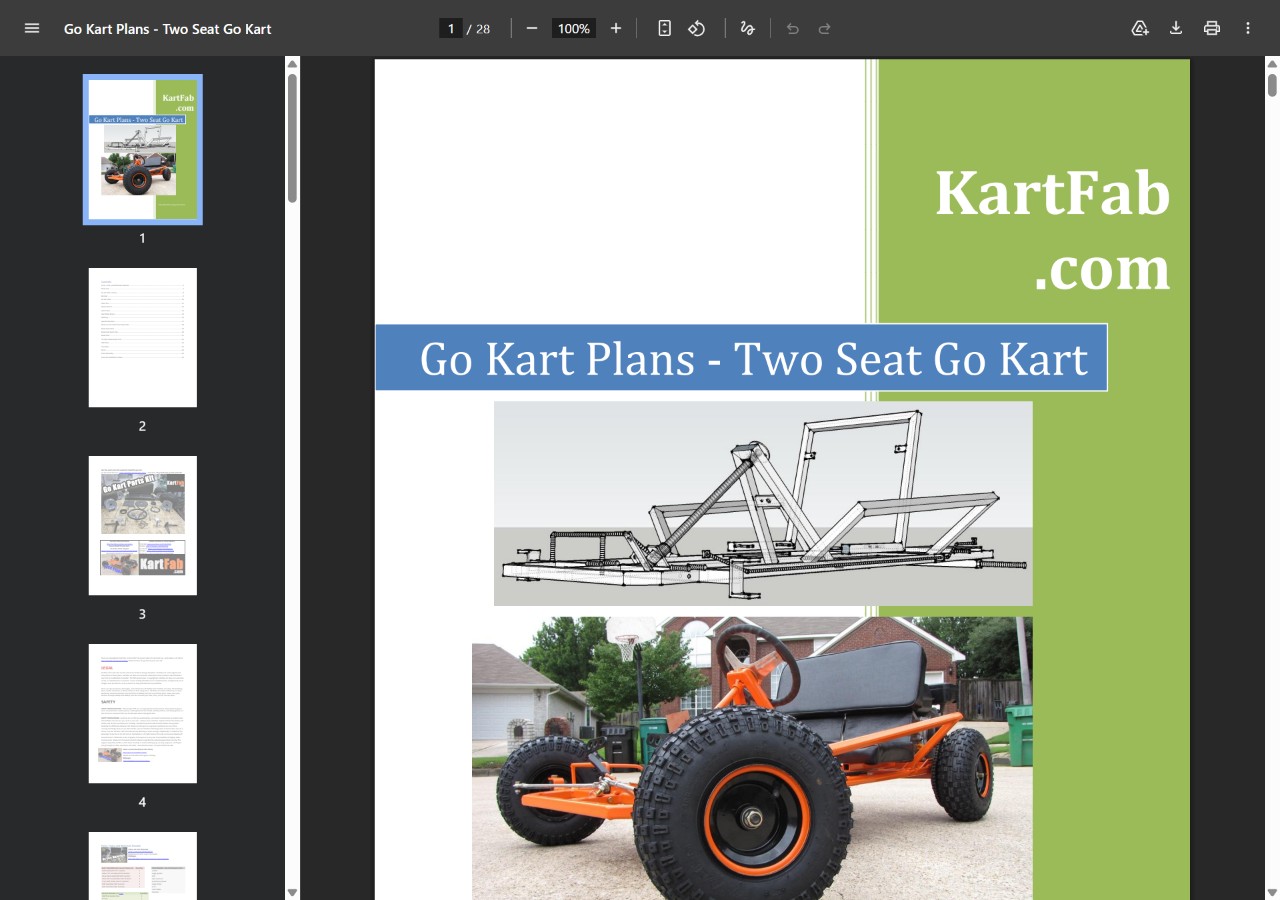

The centerpiece is a 28-page PDF for a two-seat, fixed-axle steel-tube kart built around the 6.5 HP 212cc Predator, the roughly $150 Harbor Freight engine half the DIY internet runs. It downloads straight off the page with no signup and no drip campaign. It is not a teaser either - it opens with a table of contents, walks through a full parts and materials list, has a safety section, and gets into dimensioned CAD drawings of the frame. Backing it up is a 13-phase online walkthrough with photos for every step, plus a YouTube series you can build alongside.

• A table of contents and a full parts + materials list
• Dimensioned CAD frame drawings and a cut list
• Steering shaft, tie rods and spindles
• Fixed rear axle, bearings and sprocket
• Band brake and throttle linkage
• Floor pan and engine mount
• Safety notes, paint prep and final assembly

The parts, and what it really costs

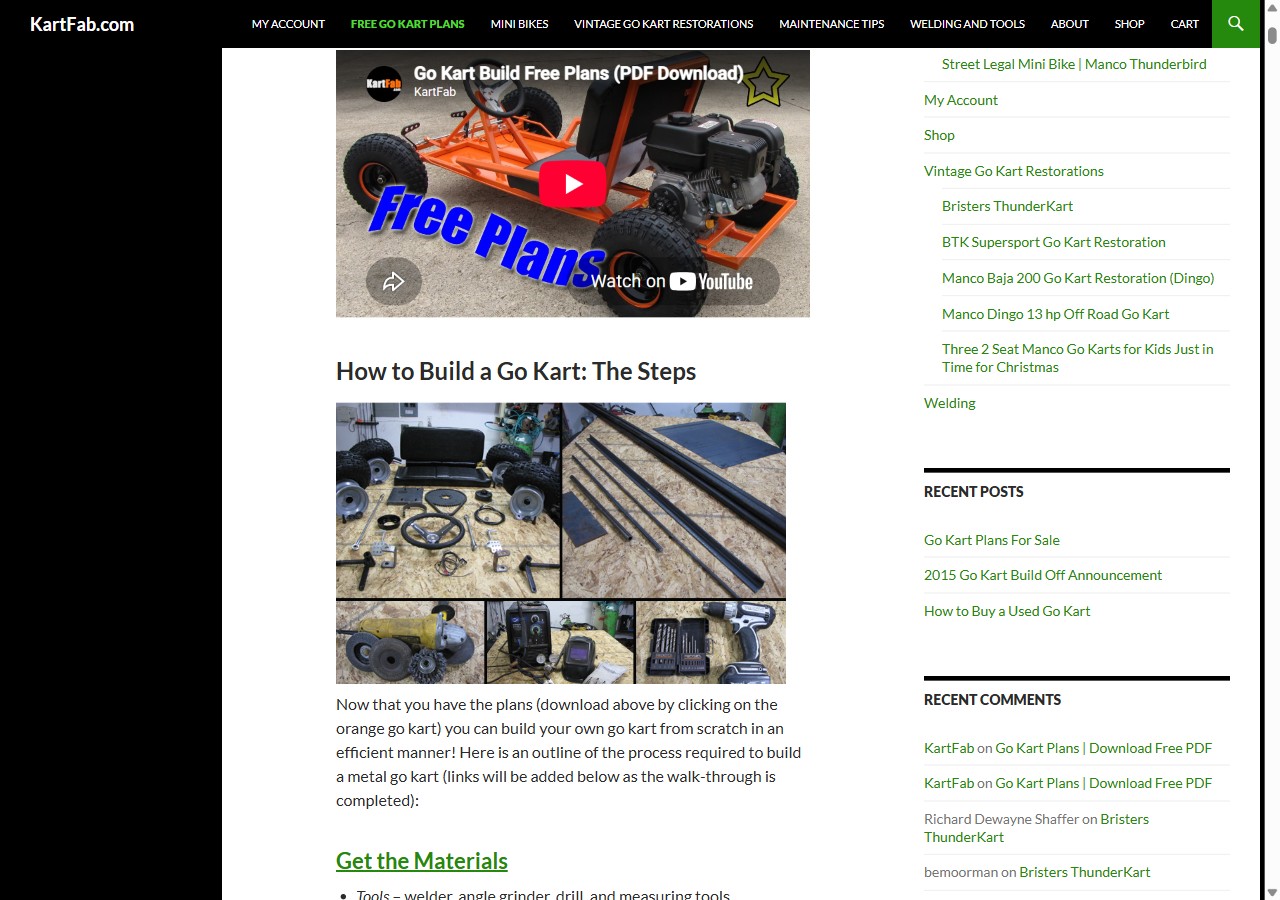

This is where 'free' needs an asterisk - the plan is free, the kart is not. Realistically you are looking at $130 to $200 for a Predator 212, another $300 to $500 for a parts kit (wheels, axle, steering, band brake, seats), and around $150 in steel tube. Call it $500 to $800 all in, depending on what you already have in the garage. KartFab funnels the parts through a GoPowerSports affiliate link, which is fair on a free plan, but nothing stops you sourcing the exact same kit yourself from BMI Karts or the local steel yard.

What building it is actually like

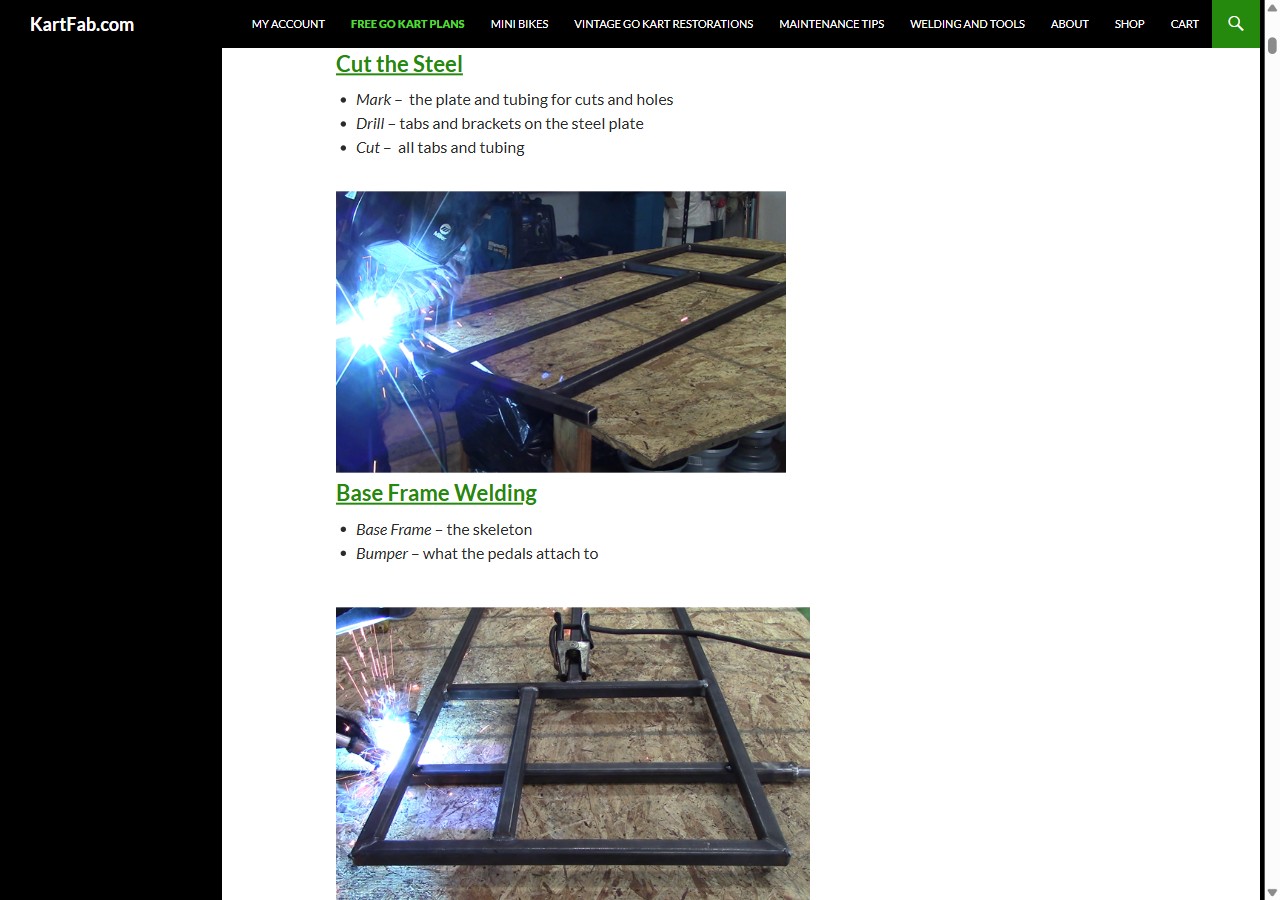

Make no mistake, this is a welding project. You need a welder, an angle grinder, a drill and something to measure with, and you need to be comfortable laying a bead that will carry a rider. The guide breaks the build into bite-sized phases - cut the steel, weld the frame, build the axle, drop in the floor tray, mount the engine, hang the seats, plumb the steering, fit the band brake, run the throttle cable, add the side rails, then paint and assemble.

The frame is deliberately repetitive, and that is the best thing about it for a first build: the bracket you fumble on the first corner is the same bracket three more times, so by the last one you can genuinely weld. If you have never built a vehicle before, this is a forgiving place to start.

Fixed axle vs live axle: the one real limitation

The most important thing the roundups never mention: the free KartFab plan is a fixed-axle design. Both rear wheels are locked to one solid shaft and turn at the same speed. That is simpler to build and perfectly fine for cruising a field or a driveway, but because the outside wheel has to travel farther than the inside wheel in a corner, a fixed axle scrubs and pushes in tight turns and takes real effort to steer at low speed. KartFab knows this - the live-axle version, where the drive is handled properly, is their paid upgrade at around $20, along with a set of cleaner drawings. So the honest read is: the free plan builds a good kart, and the thing that would make it a great kart is behind a (small) paywall.

Free gets you one good kart and a bit of guessing at the edges. That is the honest trade.

Paint, and the finished kart

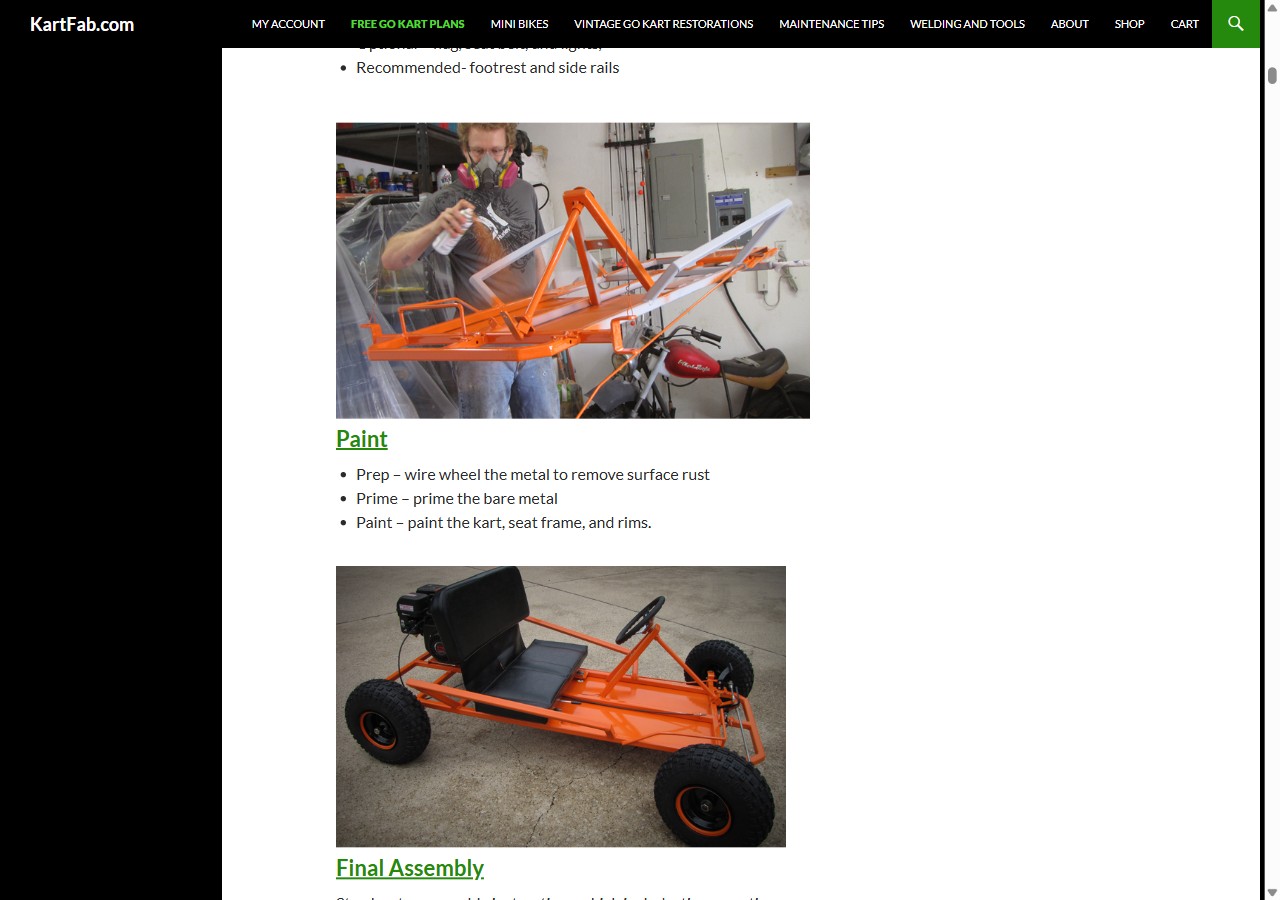

The plan does not abandon you at the rolling chassis. It covers prep, primer and paint, and the final assembly, and the finished orange two-seater in KartFab's own photos genuinely looks like something you would be proud to pull out of the garage. For a free plan, that end-to-end coverage - all the way to a painted, running kart - is rare.

Who it is for (and who it is not)

• For you if: it is your first build, you want a two-seat street or field cruiser, and you own or will buy a welder
• For you if: you learn best with a video and photo guide to follow along
• Not for you if: you do not want to weld - there is no no-weld version here
• Not for you if: you want real suspension, an off-road buggy, a racing single-seater, or a kids' kart

KartFab vs a paid plan set

We are not going to pretend the free PDF is weak to sell you ours - it is very good, and for a lot of people it is all they will ever need. The difference is scope and finish. Our drawings are CAD-clean throughout, every kart shares one documented parts system, and the two-seat GrandDaddy gives you the thing KartFab's free plan does not: real rear suspension, so it takes rough ground without loosening your fillings. If KartFab is where you cut your first steel and you catch the bug, the GrandDaddy is where we would point you next.
