Plan 07 / Go kart blueprint
Itzy Bitzy
Kids' kart / weekend build
Make your kid's day with the Itzy Bitzy. Just because they are small does not mean they cannot drive. This is our classic small kid's kart - get those tykes out riding with the rest of the gang.
- 42 lb
- 3 hp
- Weekend build
| Seats | 1 (child) |
|---|---|
| Wheels | 4 |
| Length | 36" |
| Width | 24" |
| Wheelbase | 30" |
| Weight | 42 lb |
| Tires | 10.5 x 3.5 |
| Chassis | 1" #14 square |
| Motor | 3 hp horizontal shaft |
| Transmission | Centrifugal clutch |
| Brakes | Band |
| Steering | Tie rods / pitman |
One-time / lifetime access
Both packages include all seven plans. The $79 one adds the video build class.
Plans + class, only $20 more
All seven go kart plans
Instant download · Thousands of builders · Refund on request
About

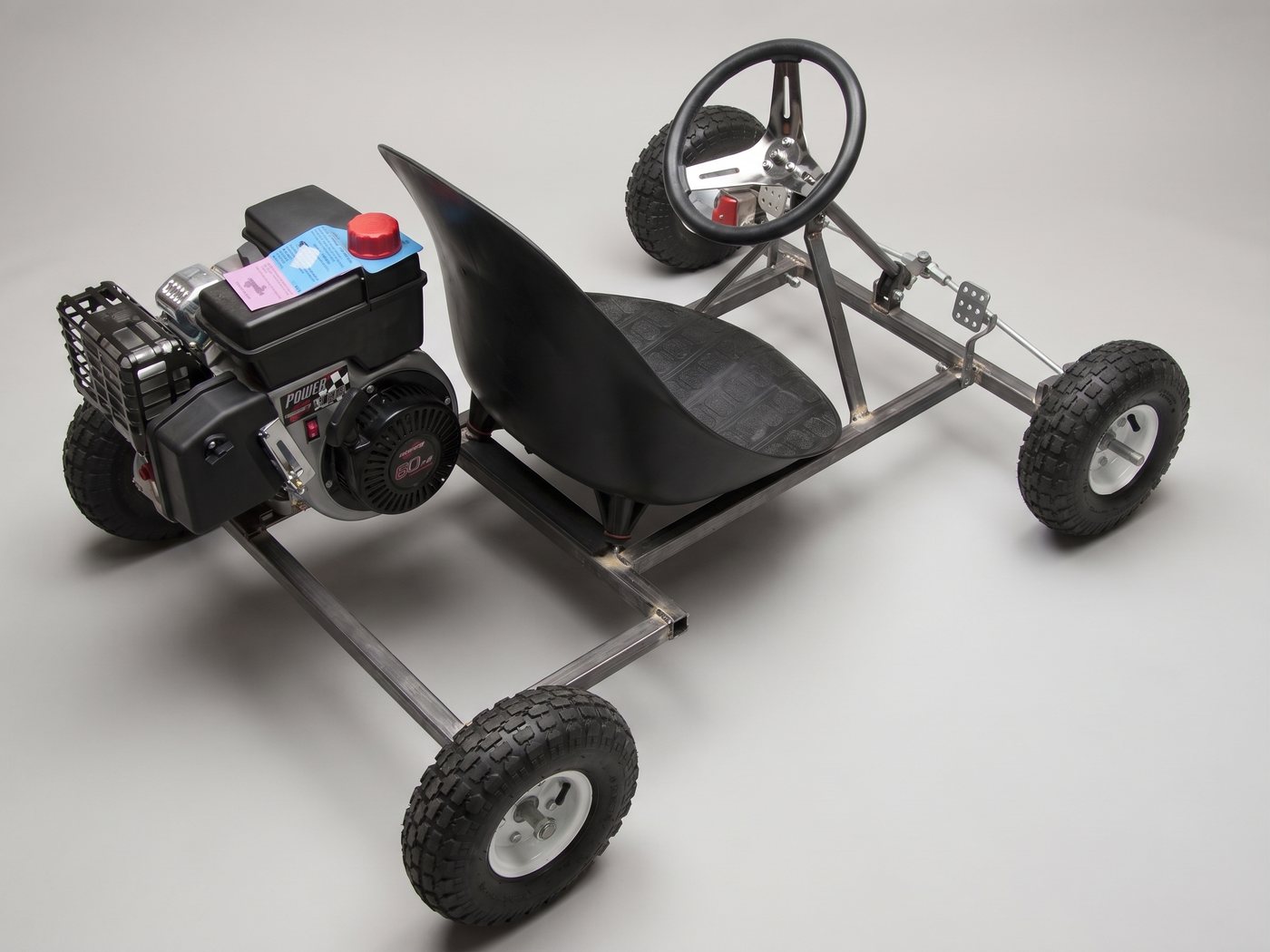

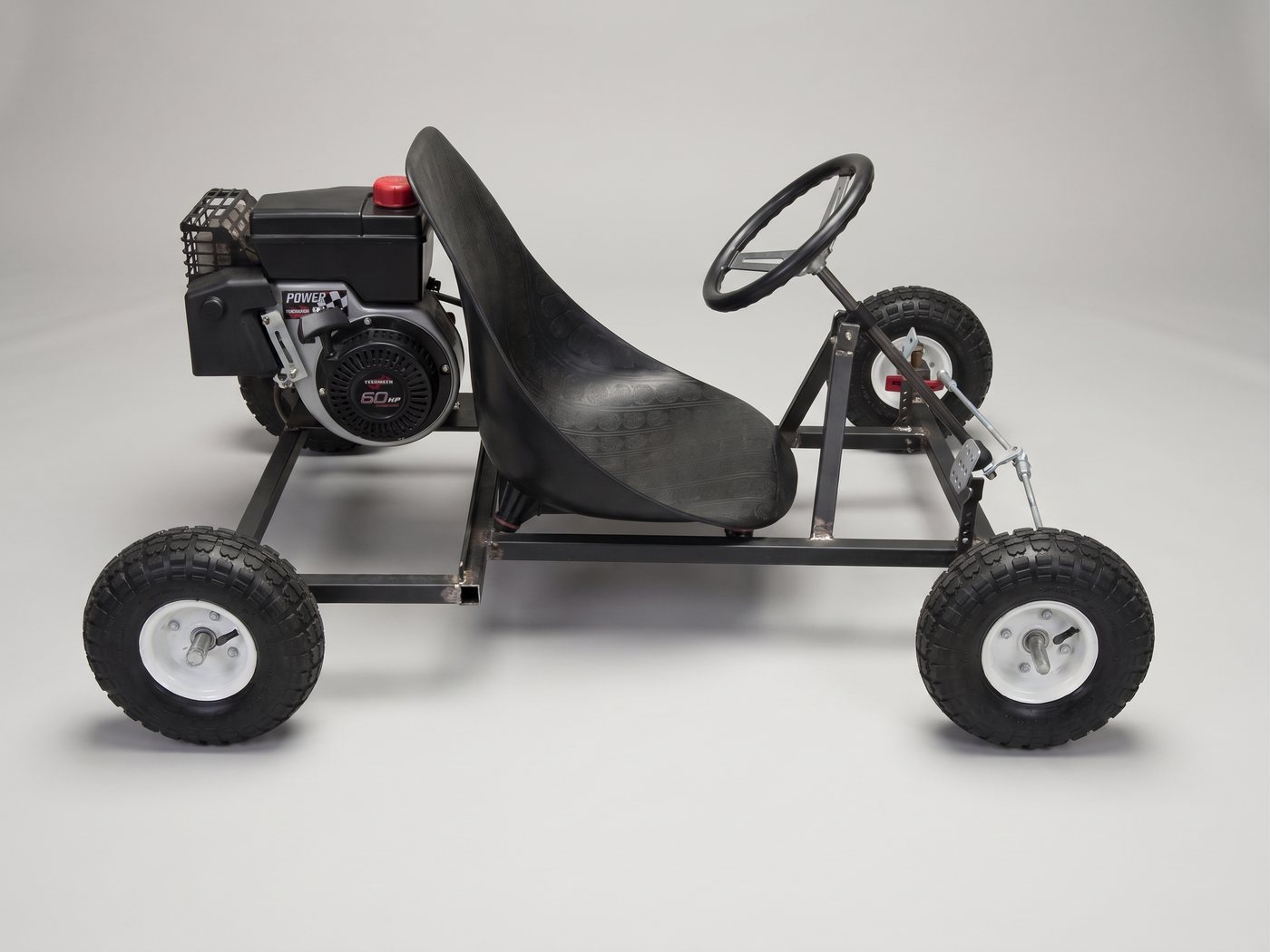

The Itzy Bitzy go kart
If you have a beginner in the family and are on a budget, this is the kart for you. Tiny, stable and budget minded, and a very easy kart to build.
This kart is perfect for a weekend project. It will be up and running in a couple of afternoons. At its heart it is just an absolute blast, exactly like your kids.
Build-out highlights
What you are building
- Simple low cost design
- Smaller size, scaled for kids
- Full sized racing bucket seats with padded covers
- 1" 14 gauge square tubing
- Motor of your choice, with room for upgrades
- Racing tie rods and ends, fully adjustable alignment and steering
What's in the plans
What the Itzy Bitzy plans look like
These are real pages out of the Itzy Bitzy plan set. Every tube is dimensioned, every part is numbered, and the welds are shown in the order you do them.
Six pages from the Itzy Bitzy plan itself. Every kart gets the same treatment.
-

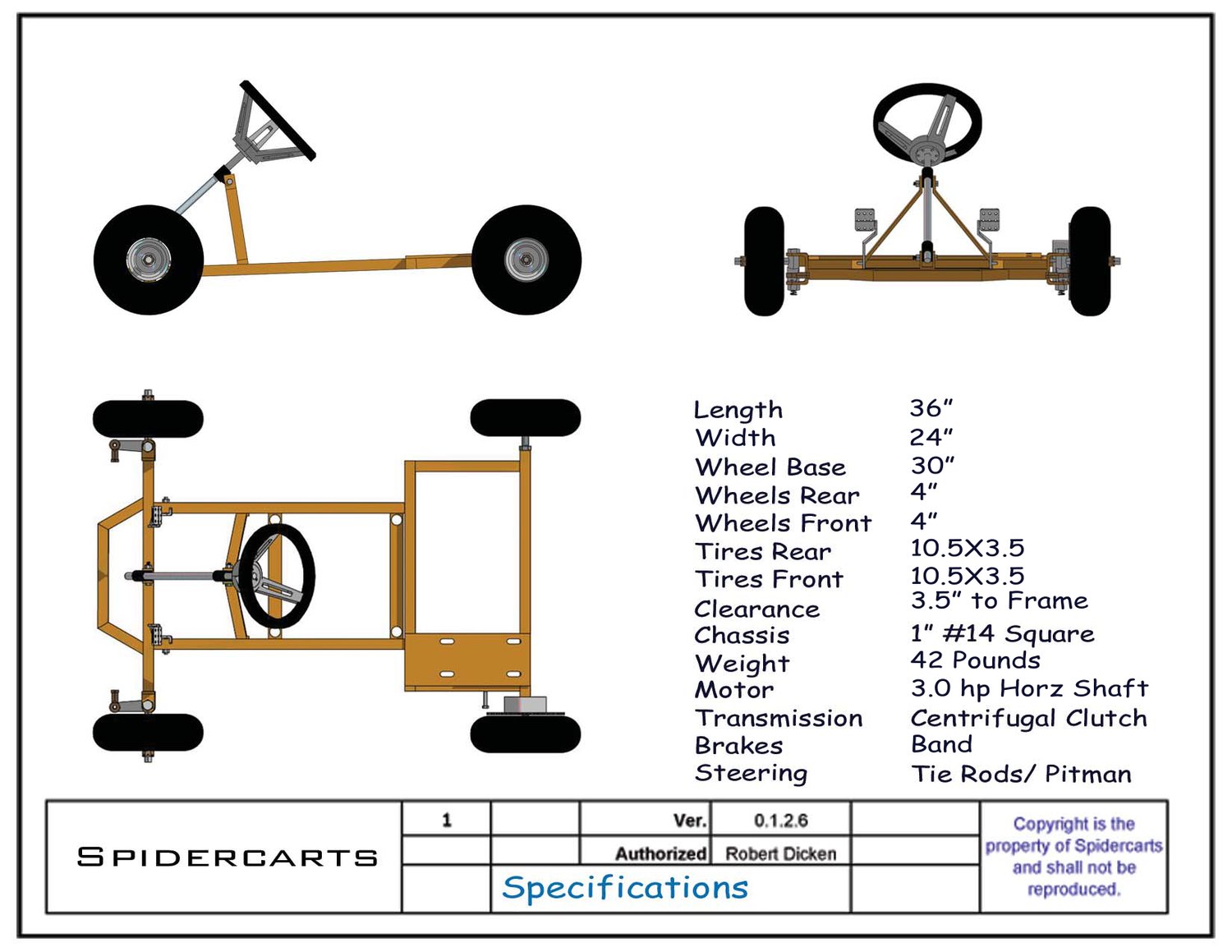

Full spec sheet: 36 in length, 30 in wheelbase, 3 hp engine, tire and chassis sizes
-

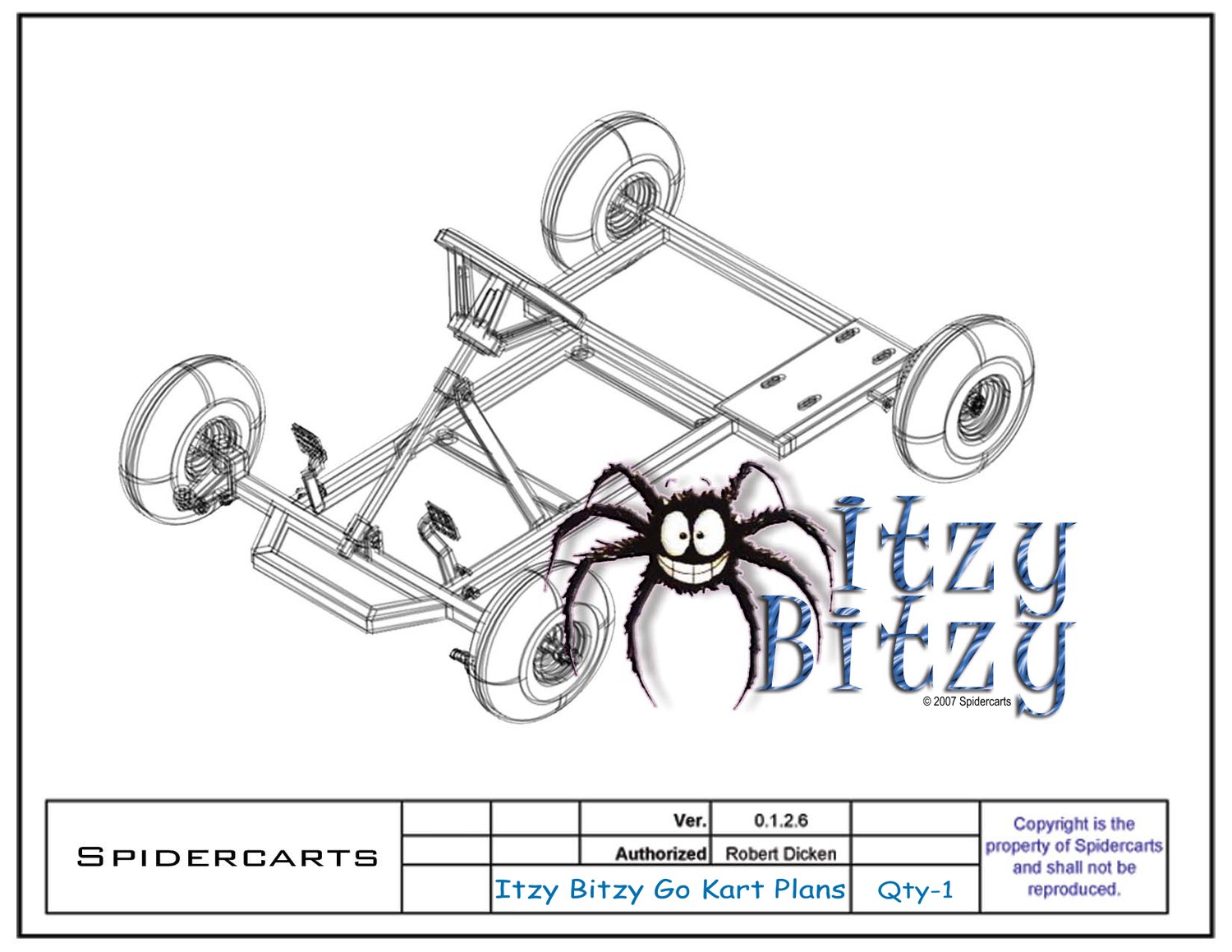

3D CAD assembly view of the complete Itzy Bitzy chassis, steering and running gear
-

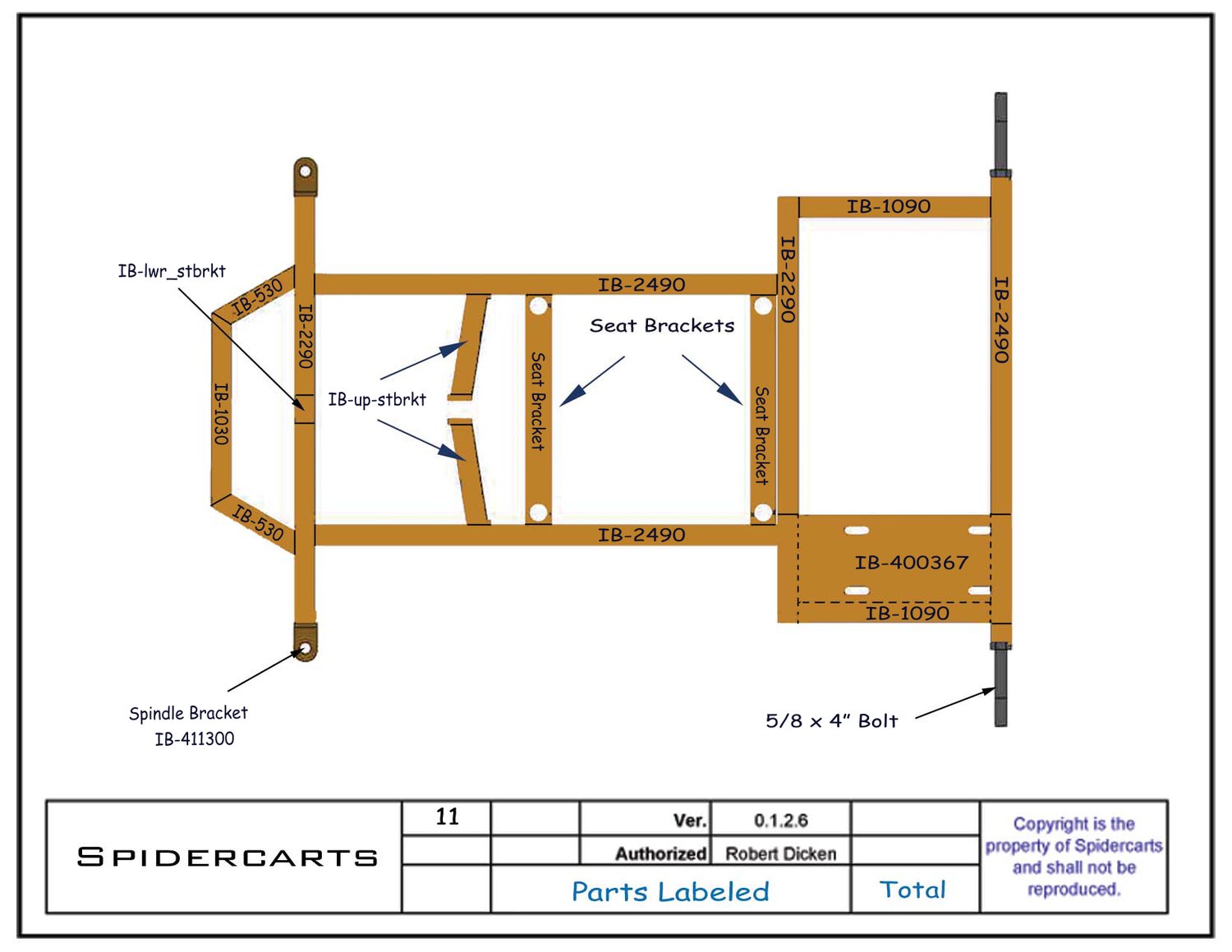

Complete frame layout with every tube and bracket called out by part number
-

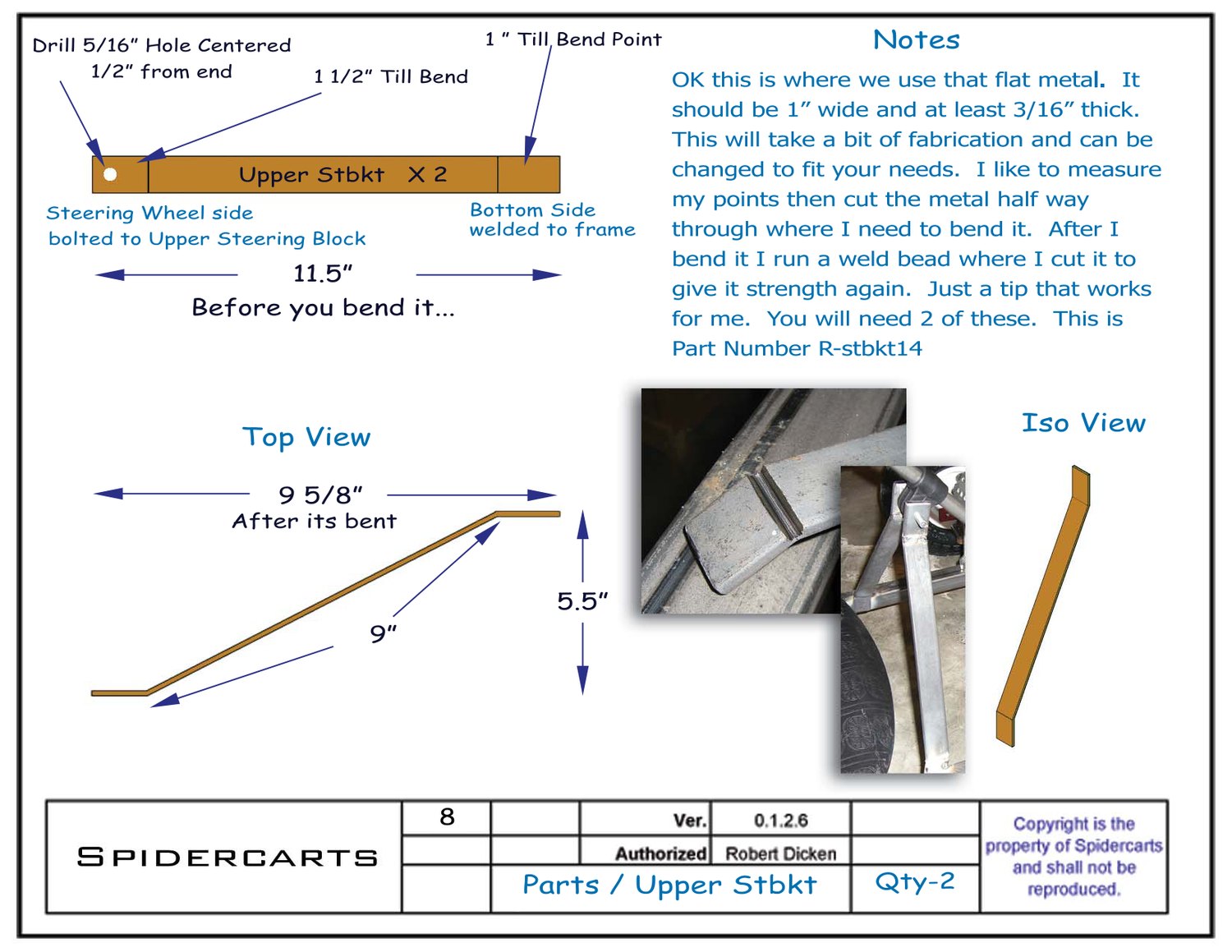

Upper steering bracket: bend points, 5/16 in hole location and finished 9 5/8 in dimension
-

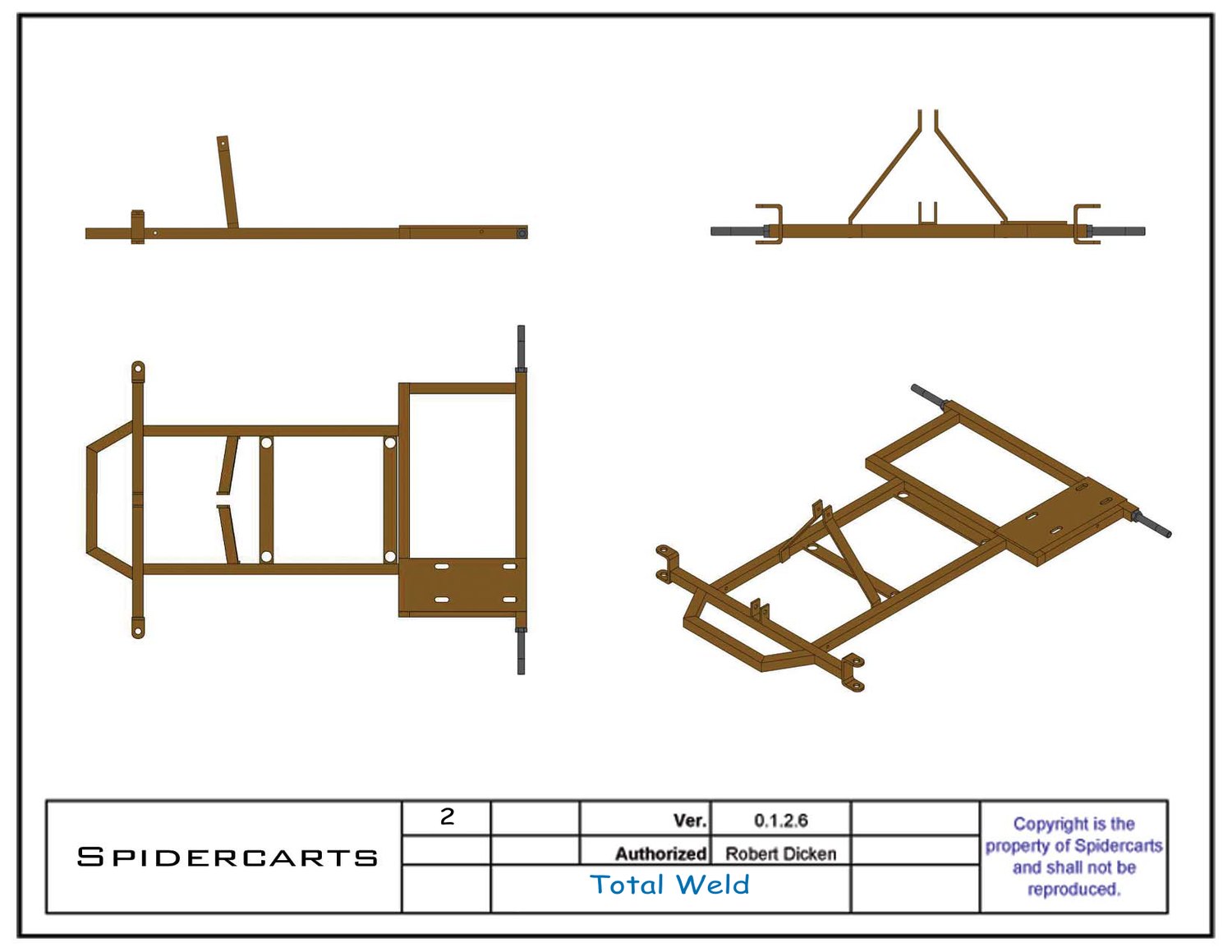

Total weld drawing: the finished welded frame in four views before parts go on
-

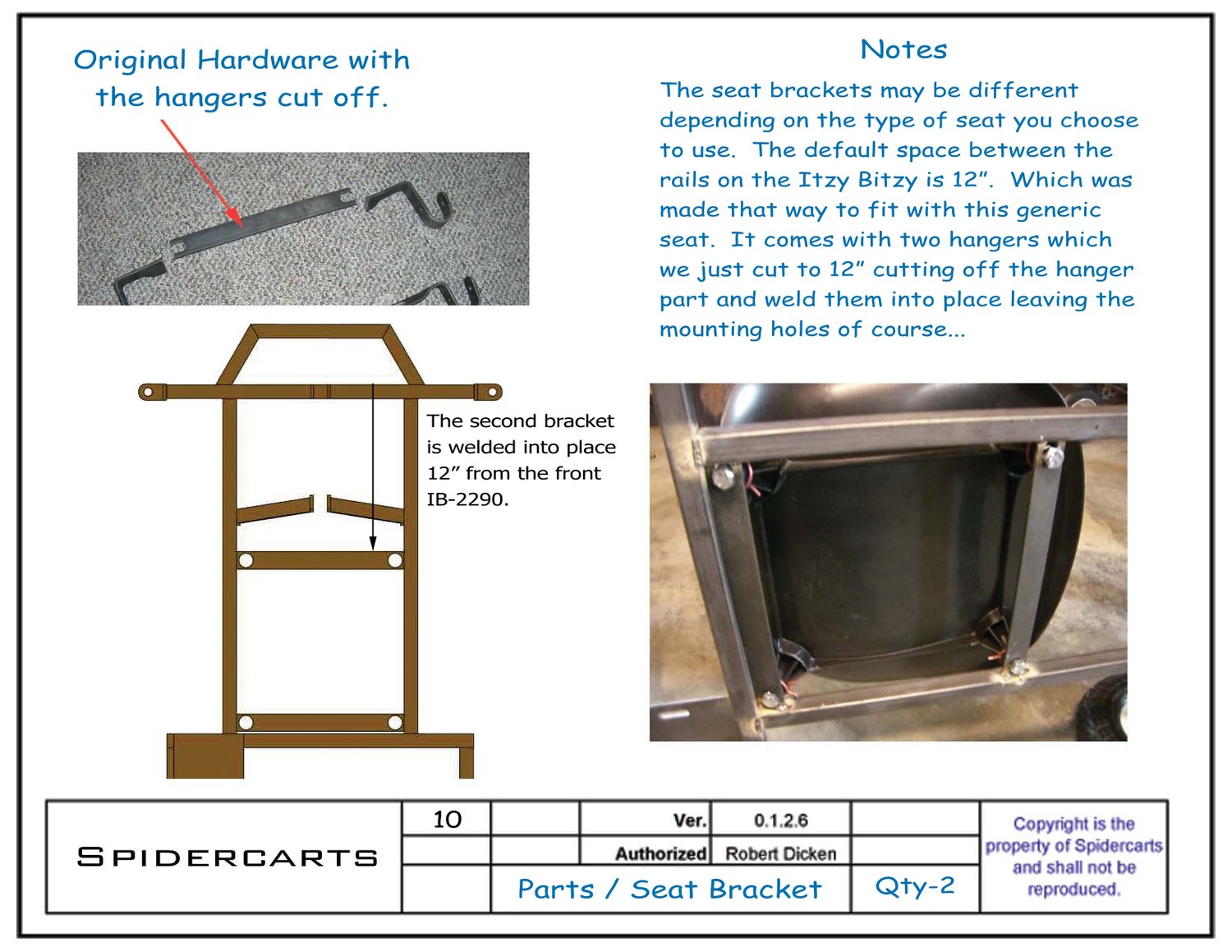

Seat bracket step with colour photos of the hardware and the seat mounted on a real frame
Sample pages
Free sample pages
Eight sample pages, free, straight out of a SpiderCarts plan set: the specification sheet, dimensioned part drawings, weld assembly steps and the parts list. Not the full plan - a real look at what you get. Enter your email and the download link shows up right here.
Your link appears here instantly. We will also send occasional build tips and discounts - unsubscribe any time, one click.
Also in the box
Extras
Every order comes with more than the seven kart plans.
- Beginner's Guide to Welding
- 19 pp
- A 19 page welding handbook. Safety, gear, settings charts, and step by step MIG and stick.
- Itzy Bitzy kids' kart
- Free
- The free kids' mini go kart plan, included with every order.
- Quick-Jack Shop Lift
- 23 pp
- Plans for a foot-lever jack that lifts a kart off the shop floor and holds it at working height.
- Go-Kart Speedometer
- 5 pp
- Turn a bicycle computer into a kart speedometer. Parts, sensor mount, wiring and calibration.
