Plan 03 / Go kart blueprint
Scorpion
Three-wheeled / mono rear
The Scorpion is our killer three wheeled design. A huge mono rear wheel with suspension makes it a donut machine. It is a sister kart to the four wheeled Tarantula, with an interchangeable sub-frame.
- 3 wheels / mono rear
- 6 ft long
- 62 lb
| Seats | 1 |
|---|---|
| Wheels | 3 (mono rear) |
| Suspension | Front + rear |
| Length | 6 ft |
| Width | 2 ft 6" |
| Wheelbase | 3 ft 6" |
| Weight | 62 lb |
| Rear tire | 12.0 x 800-6 |
| Front tires | 10.5 x 450-6 |
| Chassis | 1" #14 square |
| Motor | 6 hp horizontal shaft |
| Transmission | Centrifugal clutch |
| Brakes | Hydraulic disc |
| Steering | Tie rods / pitman |
One-time / lifetime access
Both packages include all seven plans. The $79 one adds the video build class.
Plans + class, only $20 more
All seven go kart plans
Instant download · Thousands of builders · Refund on request
About
The Scorpion go kart

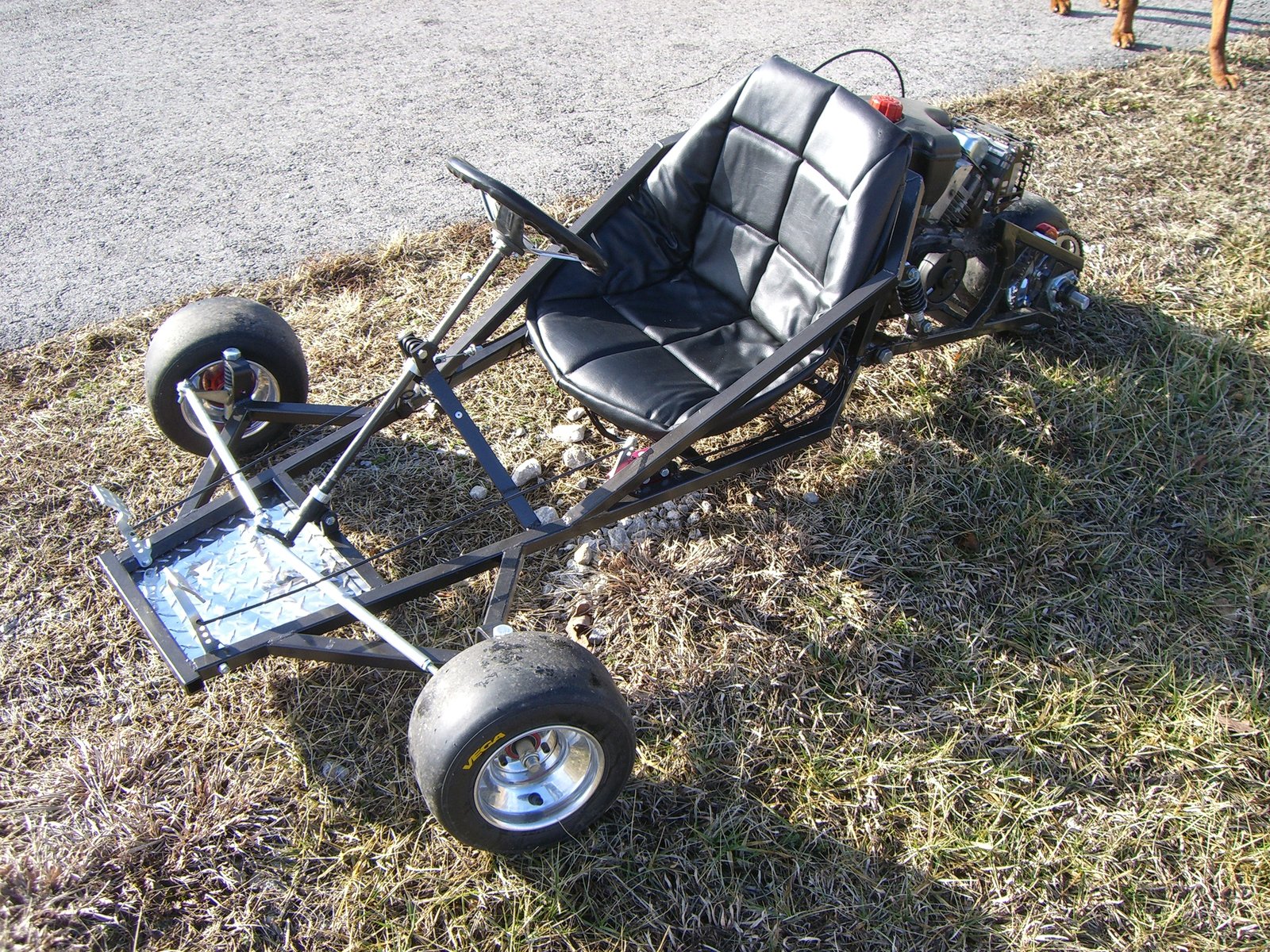

The Scorpion is, let us be honest, an absolute blast to drive. The mono rear wheel really helps when you want to do spinouts.
And it just looks cool. These plans and blueprints will get you to the ultimate three wheeled kart in no time.
Build-out highlights
What you are building
- Single 12" wide back tire on aluminum axle and components
- High performance hydraulic brakes
- Front spindle bracket springs and rear suspension
- Full sized racing bucket seats with padded covers
- 1" 14 gauge square tubing
- Motor of your choice, with room for upgrades
- Racing tie rods and ends, fully adjustable alignment and steering
What's in the plans
What the Scorpion plans look like
These are real pages out of the Scorpion plan set. Every tube is dimensioned, every part is numbered, and the welds are shown in the order you do them.
Six pages from the Scorpion plan itself. Every kart gets the same treatment.
-

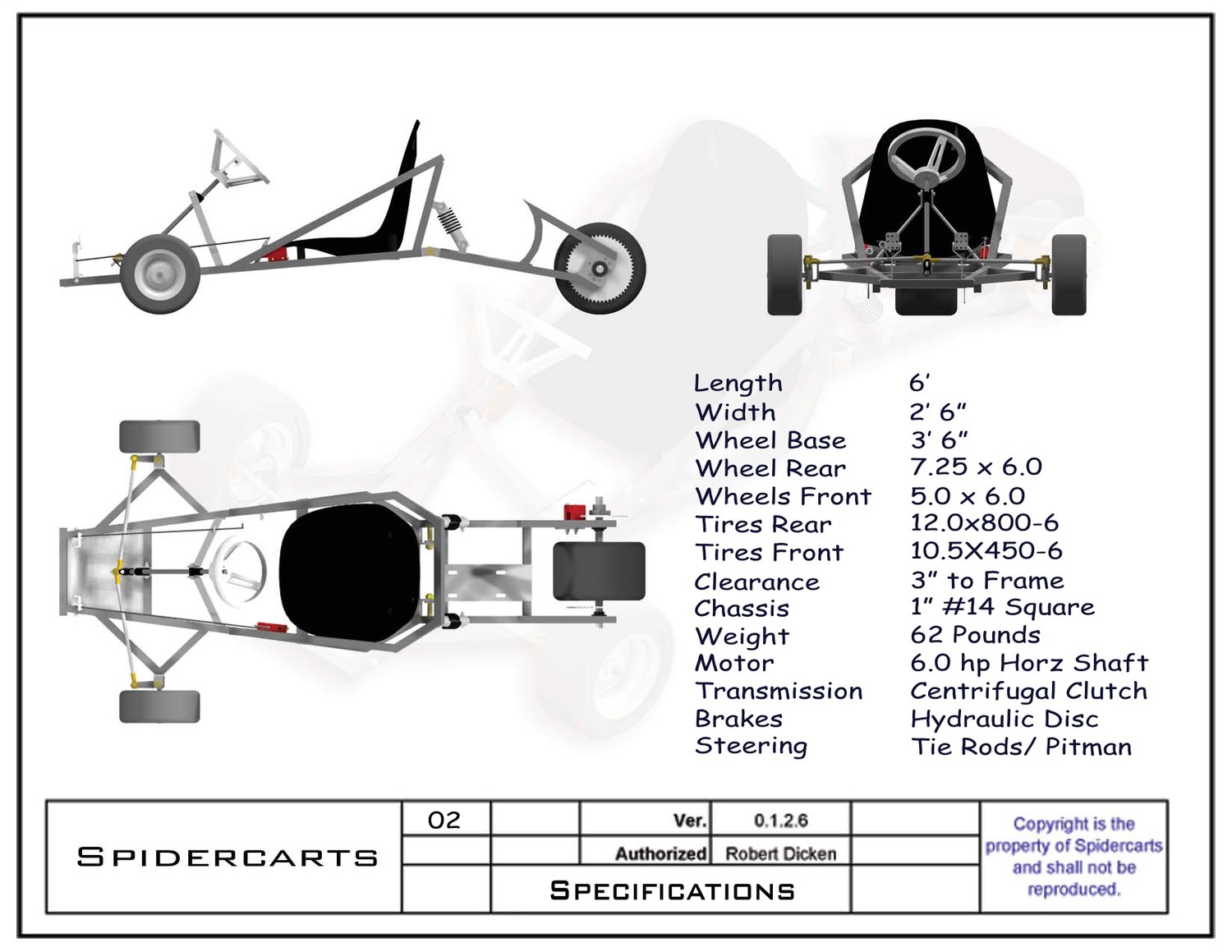

Full spec sheet: 6 ft length, 62 lb chassis, tire sizes, engine and brake specs
-

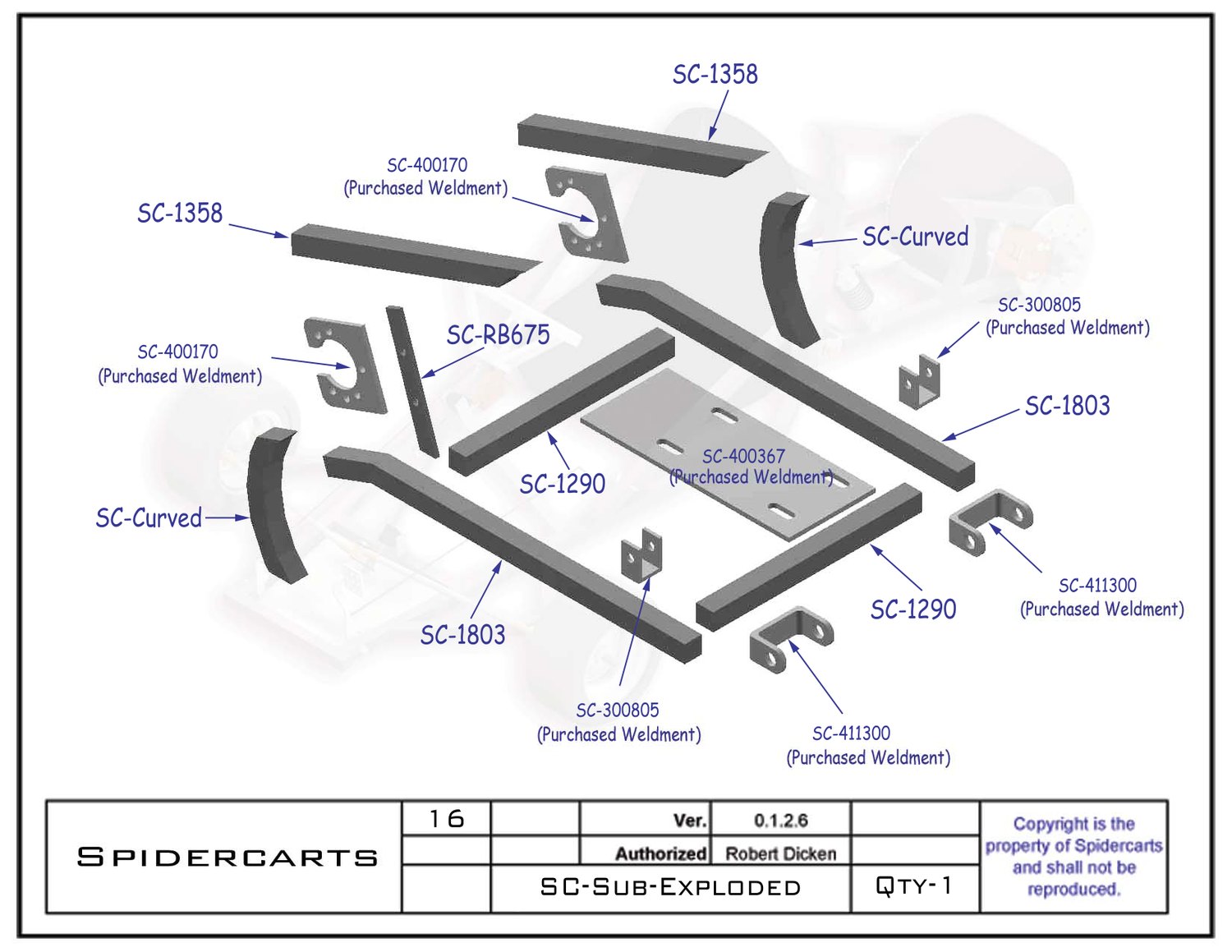

Exploded view of the rear sub-frame showing how every tube and bracket fits together
-

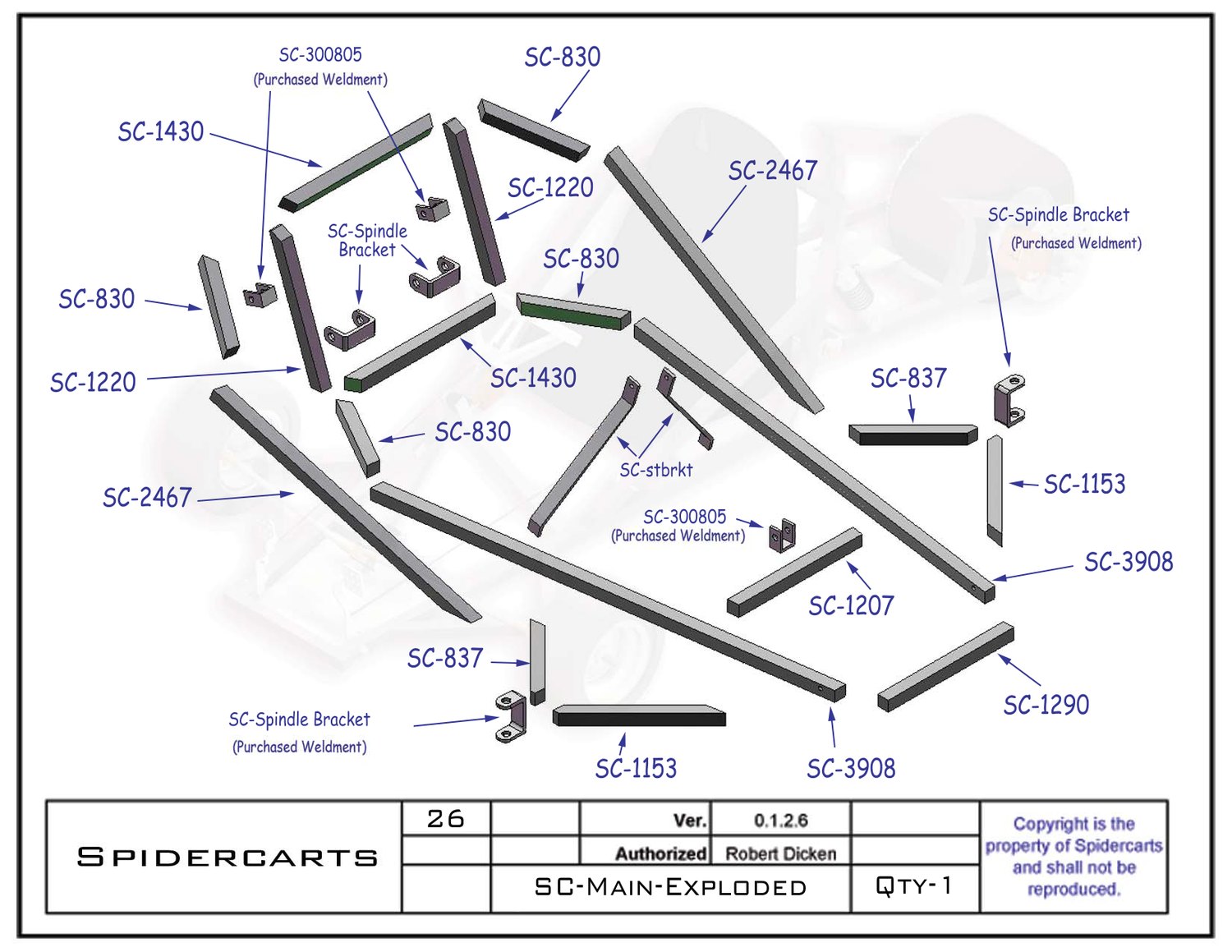

Main frame broken out with all 16 pieces called out by part number
-

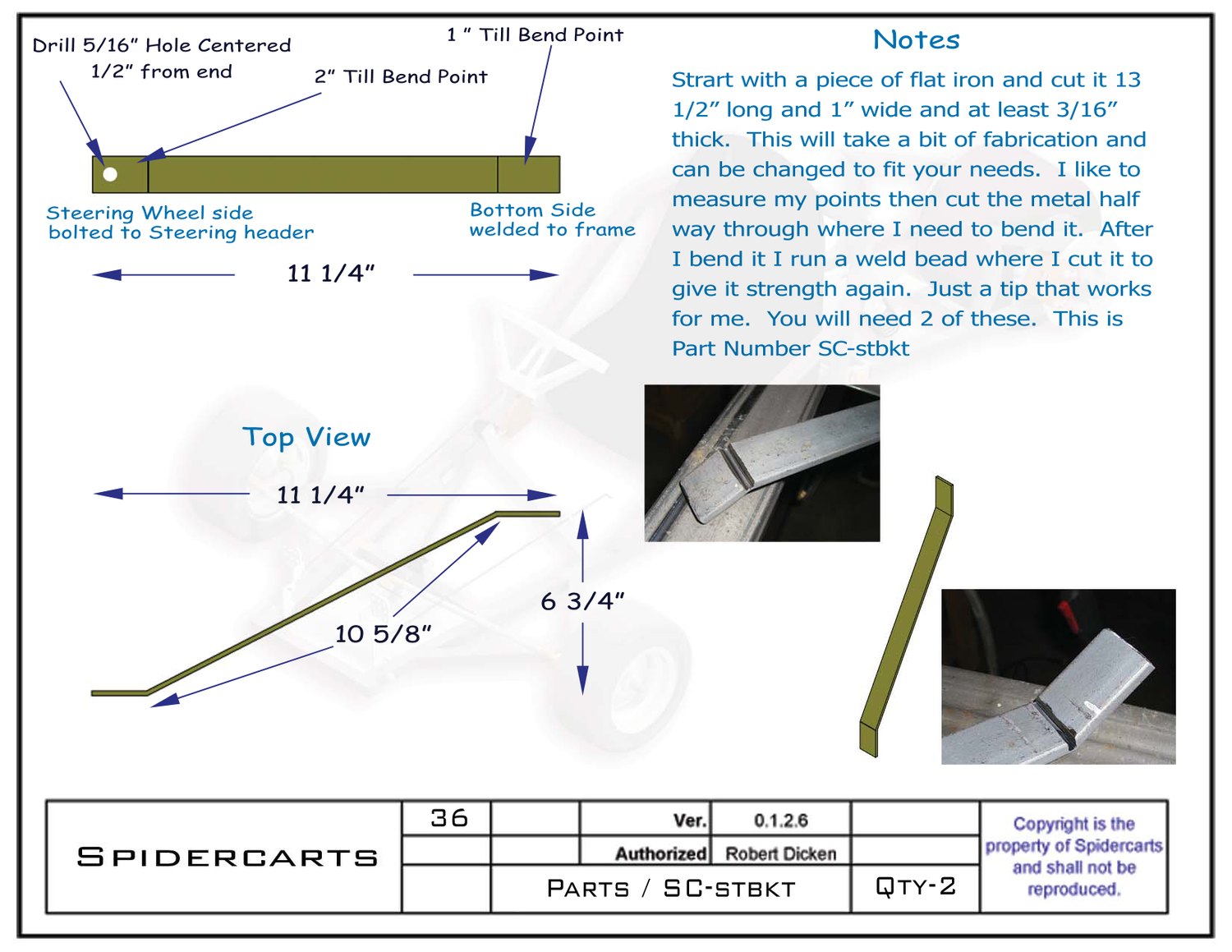

Steering bracket drawing with 11 1/4 in length, bend points, hole spacing and build photos
-

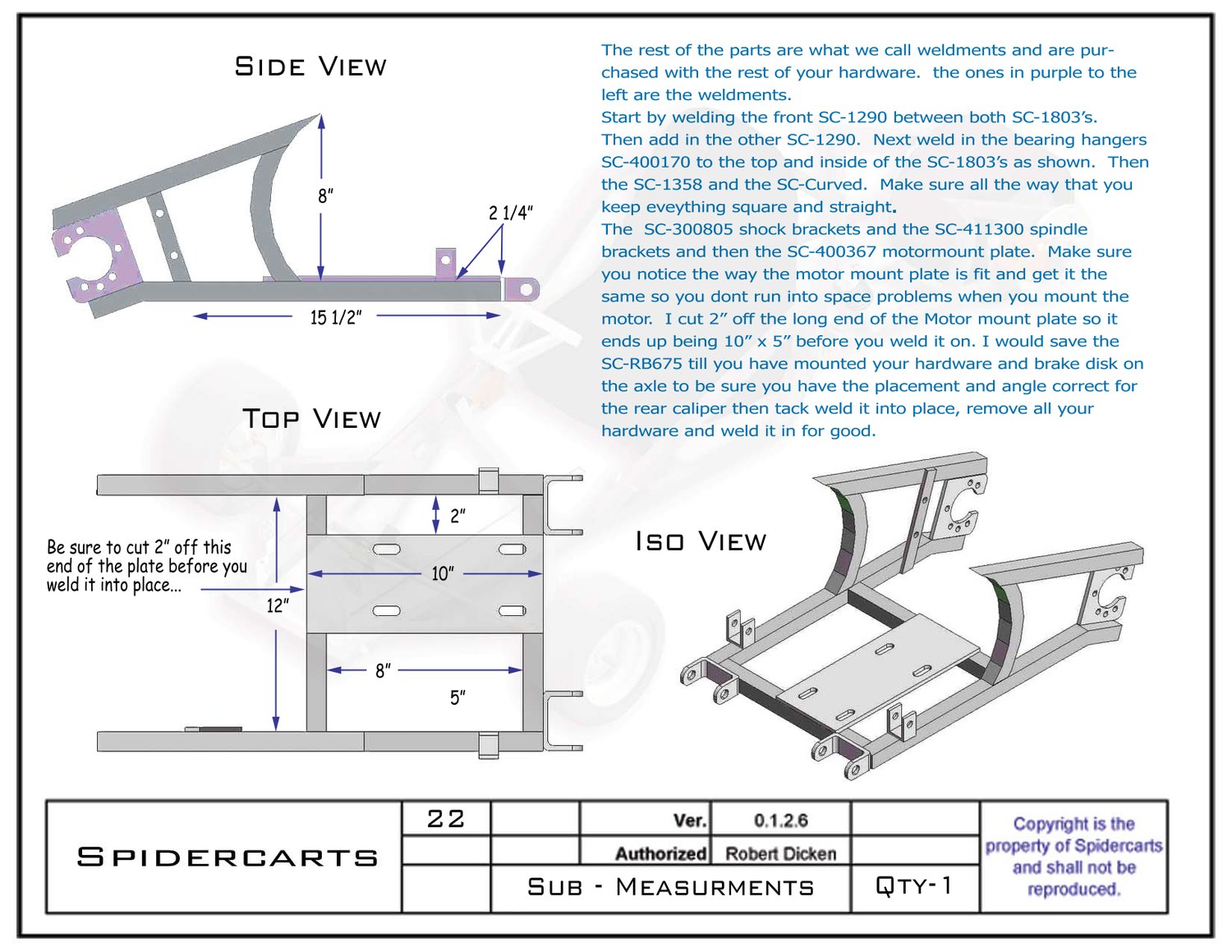

Weld order for the sub-assembly with measurements for every bracket location
-

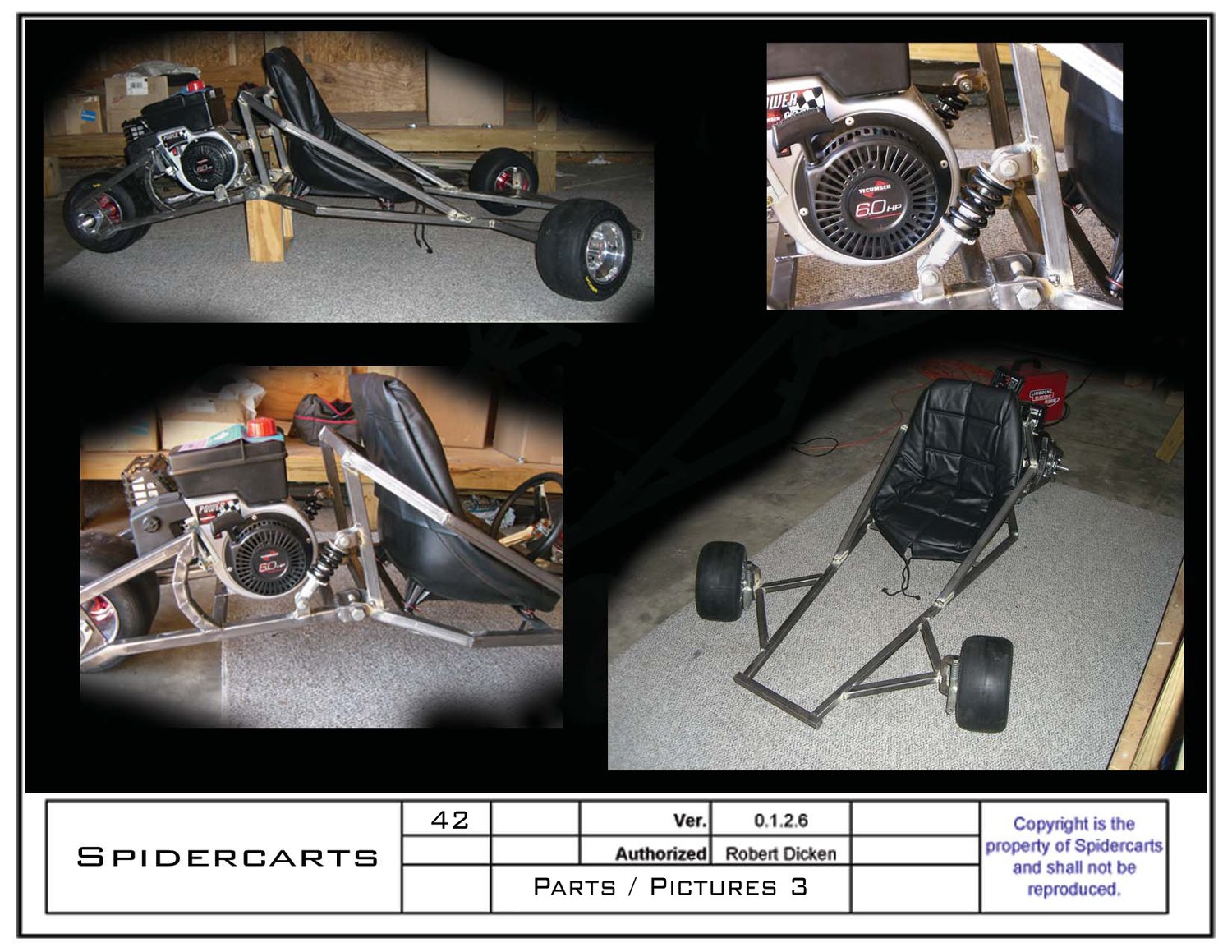

Colour photos of a finished Scorpion build with engine, seat and rear tires mounted
Sample pages
Free sample pages
Eight sample pages, free, straight out of a SpiderCarts plan set: the specification sheet, dimensioned part drawings, weld assembly steps and the parts list. Not the full plan - a real look at what you get. Enter your email and the download link shows up right here.
Your link appears here instantly. We will also send occasional build tips and discounts - unsubscribe any time, one click.
Also in the box
Extras
Every order comes with more than the seven kart plans.
- Beginner's Guide to Welding
- 19 pp
- A 19 page welding handbook. Safety, gear, settings charts, and step by step MIG and stick.
- Itzy Bitzy kids' kart
- Free
- The free kids' mini go kart plan, included with every order.
- Quick-Jack Shop Lift
- 23 pp
- Plans for a foot-lever jack that lifts a kart off the shop floor and holds it at working height.
- Go-Kart Speedometer
- 5 pp
- Turn a bicycle computer into a kart speedometer. Parts, sensor mount, wiring and calibration.
Get this build
Get all seven plans
One payment, from $59. Every package includes all seven plans and lifetime downloads.
Recommended
Plans & Video Class
All seven plans plus the video class
Everything in the Pro Plan Package, plus the 12-lesson video class filmed on a real Recluse build.
- Everything in the Pro Plan Package
- 12-lesson video build class
- Tools, metal and welding walkthroughs
- Lifetime access and future updates
Save $61 / only $20 more than plans alone
Plans only
40% offPro Plan Package
All seven go kart plans
Every plan we make, in one download. Print them at home and keep them for life.
- Seven kart plans, ten printable PDFs
- Parts lists, cut lists and materials
- Dimensioned drawings and weld steps
- Lifetime access
Save $40 / USD, lifetime
